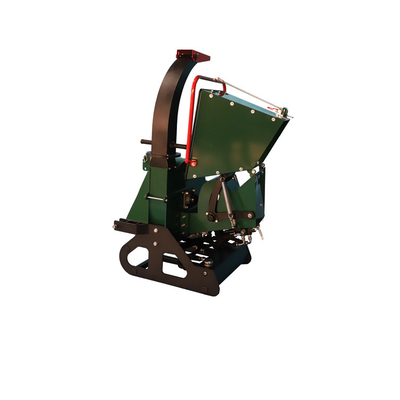

Machinery Repair Shops PTO 68 Wood Chipper Crusher Machine Forestry Machinery

100 Pieces
MOQ
Machinery Repair Shops PTO 68 Wood Chipper Crusher Machine Forestry Machinery
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: Machinery Repair Shops, Farms, Forest
Showroom Location: None
Condition: New
Type: wood chipper
Use: wood chipping
Weight: 322 KG
Warranty: 1 Year
Marketing Type: New product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Other
HP: 20-50
Transport: 3 Point Hitch
Flywheel Size: 24"Diameter / 45kgs
Blades: 4pcs, 70mmx114mmx8mm
In-Feed System: Hydraulic System
In-Feed Roller: 210mm Diameter
In-Feed opening: 6" x 8"
Hopper Opening: 23" x 27"
Packaging size: 1050X920X1020mm
engine: ducar
Grundinformation
Zahlung und Versand AGB
Packaging Details: carton
Produkt-Beschreibung
Product Description
Specification
item
value
Applicable Industries
Machinery Repair Shops, Farms, Forest
Local Service Location
None
Showroom Location
None
Condition
New
Type
wood chipper
Use
wood chipping
Place of Origin
China
Brand Name
WTD
Weight
322KG
Warranty
1 Year
Online support
Key Selling Points
Marketing Type
New product 2021
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Other
model
WTD-68WC
HP
20-50
Transport
3 Point Hitch
Flywheel Size
24"Diameter / 45kgs
Blades
4pcs, 70mmx114mmx8mm
In-Feed System
Hydraulic System
In-Feed Roller
210mm Diameter
In-Feed opening
6" x 8"
Hopper Opening
23" x 27"
Loading Qty
24pcs/20GP,52pcs/40HQ
Capacity
The WTD-68C operates on tractors with 20-50 HP at the PTO. It utilizes a large 23” x 27” (58cm x 69cm) infeed hopper opening that
tapers down to a 6” x 8” (15 cm x 20 cm) opening where the 8.25” (21cm) diameter hydraulically driven infeed roller grabs the
branches and feeds them through the chipper. Branches as small as ¼”(6mm) diameter and as large as 6” (15 cm) diameter can be fed
through the WC68. To chip full 6” (15cm) diameter logs at full infeed speed, tractors with over 40 HP at the PTO is required.

Hydraulic Infeed System
Branches are pulled into the WTD-68C via the large 8.25” (21cm) diameter infeed roller. The roller is hydraulically driven via the
chippers self contained hydraulic system. The roller is adjustable in direction and speed making it easy to feed branches of all
shapes and sizes. The hydraulic pump is belt driven from the main flywheel shaft. The roller down pressure may be adjusted via the
two large springs ensuring it grabs branches and easily pulls them in, eliminating the need for manual feeding.

Infeed Opening
The opening in the flywheel housing is a large 6” x 8” (15cm x 20cm) square making it quite easy to accept branches with several
limbs. This reduces the need to trim your branches down before feeding them into the chipper.
Discharge Chute
The discharge chute was designed to rotate 360 degrees by simply rotating it with the two handles to the desired angle. This makes
it possible to direct the wood chips in any direction regardless of the location of the chipper. The end of the chute stands at
66” (1.7m) off of the ground, making it quite easy to direct the wood chips into the back of a truck or trailer if desired.
Located at the end of the discharge chute is a rotating deflector, which allows further control of the location of the wood chips.
Simply point it straight for maximum distance or angled down to deflect the chips directly down to the ground or into a trailer.
Packing & Delivery
carton
Company Profile
undefined
FAQ
1. who are we?
We are based in Shandong, China, start from 2007,sell to North America(50.00%),Western Europe(25.00%),Domestic Market(20.00%),Oceania(5.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Log Splitter,material handling equipment,safety equipment,loading port equipment

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,CIP,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,German,French,Korean
