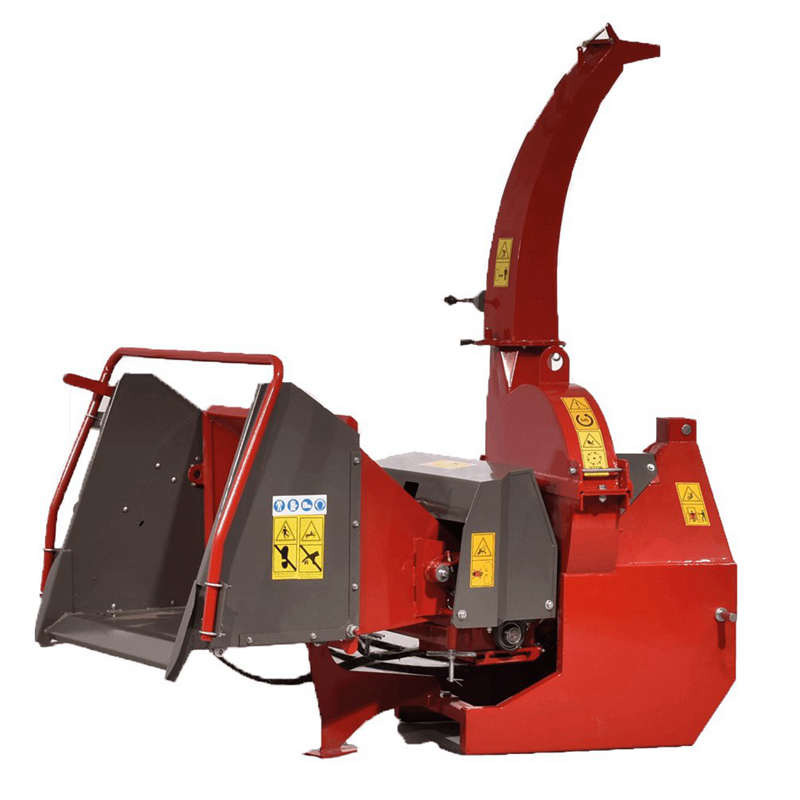

BX102R Forestry Hydraulic Feed PTO Wood Chipper Machine For Sale

1.0 Sets
MOQ
BX102R Forestry Hydraulic Feed PTO Wood Chipper Machine For Sale
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New, New
Applicable Industries: Forestry
Showroom Location: None
Type: Wood Chipper
Use: Chipping wood
Power Type: Diesel
Dimension(L*W*H): 68"x72"x85"
Weight: 560 KG
Warranty: 1 Year
Key Selling Points: Technology
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, Rotor
Model: BX72r
Color: red,blue,green,white,etc
Power: 45~ 100hp
Usage: Branches Chipping
Capacity: 7.5 x 12 inch
Package: Iron crate
Feeding system: Hydraulic Feeding
Knives: 4pcs
Drive System: PTO Shaft
Grundinformation
Model Number: BX72r
Zahlung und Versand AGB
Packaging Details: Iron crate, plywood cases, etc
Supply Ability: 5000 Set/Sets per Month
Produkt-Beschreibung
Products Description
PTO shaft driven wood chipper with hydraulic feeding system for professional and fast processing of wood with up to 15cm in diameter. Suitable for small and medium tractors with 30 to 60hp and Cat I three-point hitch.
MODELS: BX52R/WS52R, BX72R/WS72R,BX102R/WS102R

Applications

The Fistter BX-52R wood chipper offers best performance at 40 to 50hp tractor engine power. Wood branches are pulled into the wood shredder with the help of the tractor´s hydraulic system, driving the upper of the 2 opposed feeding rollers, which drag in the wood into the wood chipper. The Fistter BX-52R offers fast and easy operation. The two infeed rollers are mounted with ball bearings on each side so that both rollers are firmly guided, unable to tilt in any direction. The large safety bracket operates the hydraulic functions (IN - OUT - STOP) of the feeding rollers, so that almost all wood jams can be easily solved by the "reverse" gear.

Technology

Input roller speed is steplessly adjustable for easy adjustment of the chipper performance to diameter and type of wood. Smaller diameter can be pulled in and processed faster by the Fistter BX-52R wood chipper than larger or harder wood diameter.

Four knives, made of hardened tooling steel, are mounted on the rotor of the BX-52R wood chipper. Wood of up to 15cm diameter can be chipped into 1 to 5cm sized pieces. Additionally mounted winglets on the rotor create the necessary air flow needed to guide even difficult material through the chipper. Inside the massive rotor housing additional replaceable branch breakers are mounted to even shred small branches efficiently. The output hopper height is 210cm, can be turned by 360° and is able to throw the wood chips up to 8m far. Trailers, containers and big bags can be easily filled. The Fistter BX-52R has a capacity of up to 7-8m³/h wood chips per hour.

The completely redesigned BX-52R wood chipper also offers a trouble free access to the feeding rollers, where now the adjustable counter knife can also be found. Just 2 bolts have to be loosened to lift the upper input roller together with its massive mounting frame and service the infeed rollers fast and efficiently.

The new foldable and for this size wood chipper extremely wide 60cm input chute can be operated by the new safety bar from all sides of the machine.

For transportation of the chipper, the large input chute can be easily folded up by only one person and can be secured without any tools. By removing only one bolt, you get access to the rotor and knives of the Fistter BX-52R wood chipper, making maintenance jobs are matter of minutes. The heavy rotor disc creates a very strong air flow with its speciall design winglets, so that stuck material inside the chipper is virtually impossible. Since the hydraulic roller can turn backwards instantly, blocked material in
the input chute can be pulled out of the chipper within seconds.

The Fistter BX-shredders comply with all safety regulations and is CE tested following the 2006/42/EC machine directive.
Details Images
Product Paramenters
Model
BX52R
BX72R
BX102R
Drive System
Direct drive, pto with shearbolt
Direct drive, pto with shearbolt
Direct drive, pto with shearbolt
HP requirements
45-100
45-100
80-120
Chipper Capacity
Max 5" Dia.
Max. 7" Dia.
Max. 10" Dia.
Chipper Housing Opening
5½" x 10"
7½" x 12"
10"x17"
Rotor Size
630mm
740mm
940mm
Number of Rotor Knives
4
4
4
Rotor Weight
50kg
80kg
170kg
Feeding System
Hydraulic Feed
Hydraulic Feed
Hydraulic Feed
Dimensions
68"L x 72"W x 85"H
68"L x 72"W x 85"H
108"L x 85"W x 100"H
Hopper Opening
32" x 32"
32" x 32"
32" x 42"
Discharge Hood Rotation
360
360
360
Discharge Hood Height
76"
76"
100"
Rated RPM
540~1000
540~1000
540~1000
Weight
430kg
610kg
870kg
Product packaging
Company Profile

About us

Fistter was established in 2002 and now is one of the largest farm machine manufacturers. Our company has get the reputations of "Quality no complains company" continually 7 years and "one of 10 best agricultural enterprises in Weifang.".
Our company has Obtained the CE certificate for our products. The specifications of our products are tailor-made to requirments of customers. We also can do OEM for customers. We will be appreciated that you can give advices and suggestions on our products and services.

Certifications
FAQ
Q1: Can I put my brand name on the equipments instead of your brand name ?
A: Yes. Many dealers sell our products with their own brand name.Some have design modifications to meet their unique needs. We
welcome OEM orders.

Q2: Are you factory?
A: Yes, " Fistter" is a manufacturer(factory).We have our own moulding and producing workshops, including laser cutting workshop,
casting workshop, hardware workshop, robot welding workshop, shot blosting workshop and painting workshop. All things are
controled by ourselves.

Q3: Do you accept sample order?
A: Yes, we accepet sample order. We understand that many clients need to get sample for quality check.

Q4: Do you have R&D departmemt?
A: Yes. We have a strong team of R&D From drawing to sample.

Q5: How long does it take for the ODM sample?
A: 7-14 days.

Q6: How long will it take for normal order?
A: 30-45 days upon down pavment.

Q7: Does your packaging pass drop test of E-commerce?
A: Yes. Our packaging passed drop test of E-commerce.

Q8: Do you have any MOQ limit?
A: Low MOQ, ONE pc for sample checking is available, and try order also is welcome.

Q9: Can I get a sole distribution right for one product in my country ?
A: It depends on actual conditiion. Please talk to our sales man for sure.
Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
